aviator series
ARIA
5 WAYS FLOORSTANDING / 2 pieces
It is amazing how Aria it's capable to make music sound intimate and precise, the ease with it sculpted in three dimensions the instruments in space. The woofer at the top of the cabinet has, in this particular model, a specific task. All other models in the Aviator series interact with the environment to limit unwanted reflections, increasing the intelligibility of music.
Aria dramatically improves this by employing a variation that allows the regularization of the entire audio spectrum. The driver positioned in the upper part of the cabinet – a 165 mm woofer – is responsible for this extraordinary result.
FROM ACADEMY TO AVIATOR
like a mountain wind, pure and powerful
The floorstanding models of the Aviator line are equipped with an additional woofer, also derived from the prestigious Academy series, as with the front drivers. This extra loudspeaker is positioned at the rear of the cabinet, helping to broaden the sonic performance and improve the overall response of the system. Amelia employs a 130 mm woofer, Cielo a 160 mm, and Aria a 200 mm, each one precisely dimensioned to enhance the specific character of the model.
To this configuration is added a further woofer of the same size placed on the bottom of the speaker. The combination of these elements is not a mere design choice, but the result of careful acoustic research aimed at increasing overall performance, extending the low-frequency range, and making the listening experience even more enveloping, natural, and realistic.
ALL ABOUT OUR ARIA
the authentic breath of music
Aria is the name chosen because air is humanity’s first musical instrument and the invisible vehicle of sound. It is breath, lightness, and at the same time the substance that vibrates and moves us. As in Italian opera, the “aria” is the purest and most intense form of musical expression. This loudspeaker disappears, leaving only the music to float in space. A name that unites science and poetry, technology and art.
Tecnical Data
Low Frequency Load
Vented NRS
Configuration
5 -way Reversed Vertical Alignment Floor Standing
Drivers
1 tweeter 38mm T38Waveguide
1 Midrange 130 mm ROHACELL® Poly-Ring NeFeB motor
1 Woofer 165 mm ROHACELL® Full-Apex™ Poly-Ring NeFeB motor
2 Sub 200 mm Natural Fibres NeFeB motor
Sensitivity
95 dB SPL normalized to 1 m / 2.83 Vrms / decorrelated L/R
pink noise in ITU-R BS 1116-1 compliant listening room
Low Frequency
35 Hz @ -3dB referred to C4 WETS
5 Way Reversed Array
Conventional crossover frequency concept substituted by overlapping range
From 150 to 200 Hz
Bottom sub-Back sub-Woofer-Midrange
From 1kHz to 1.5 kHz
Woofer-Midrange-Tweeter
Rated Impedance
Modulus 4 Ω (min 3.0) Argument ± 36°
Acoustic Environment & Amplification
Speakers Orientation
Speakers should be tilted inward facing the listener
Listening Distance
Optimum speaker-listener distance > 3.5 m
Listening Layout
A carpeted floor in front of the speakers is recommended
Side and Back Walls
Should be at least 1m away from the speaker front baffle
Suggested Amplifie
Normal amping 250W/4Ω Max average power Bi-amping 130W/4Ω Max average power
Cabinet & Dimension
Cabinet

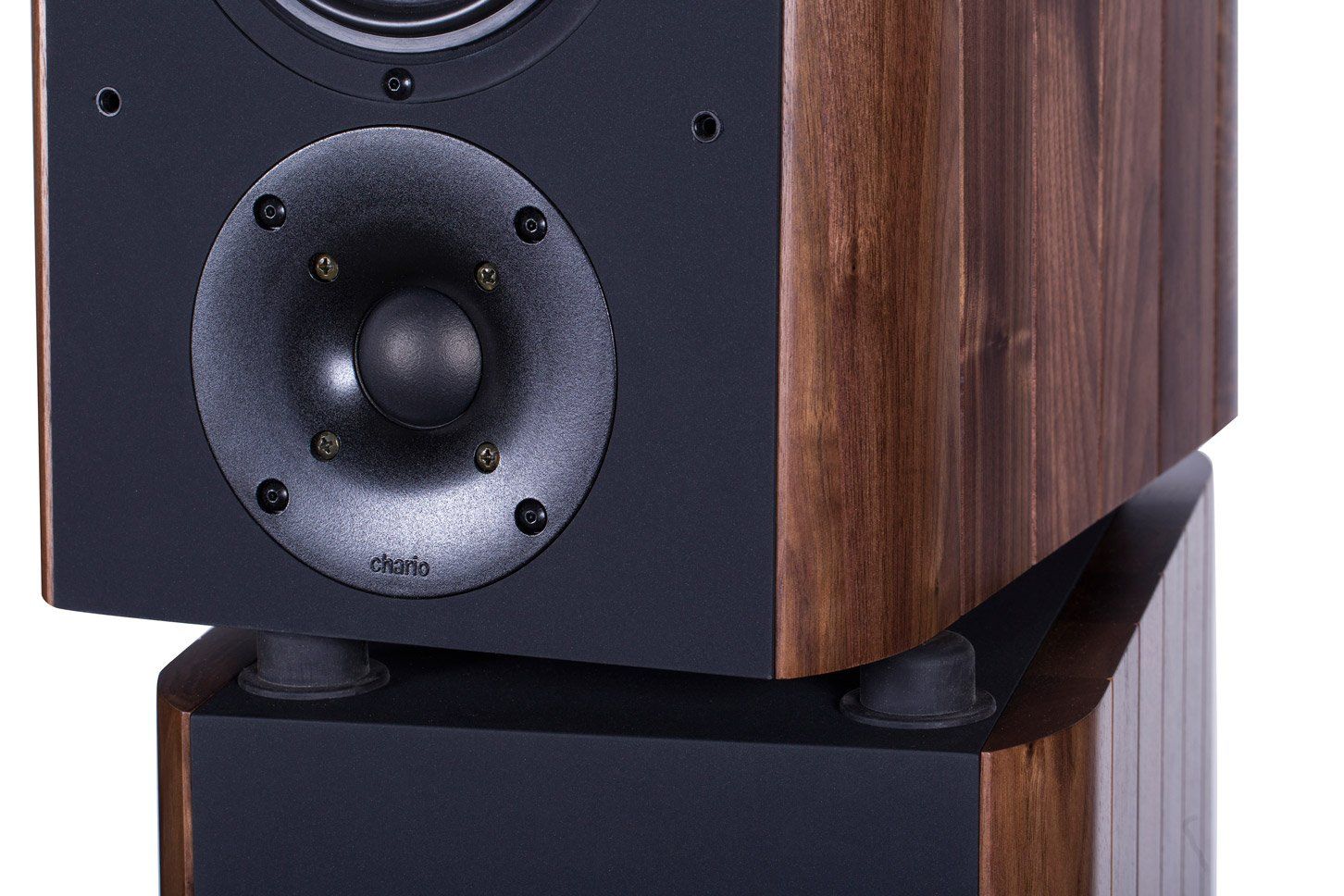

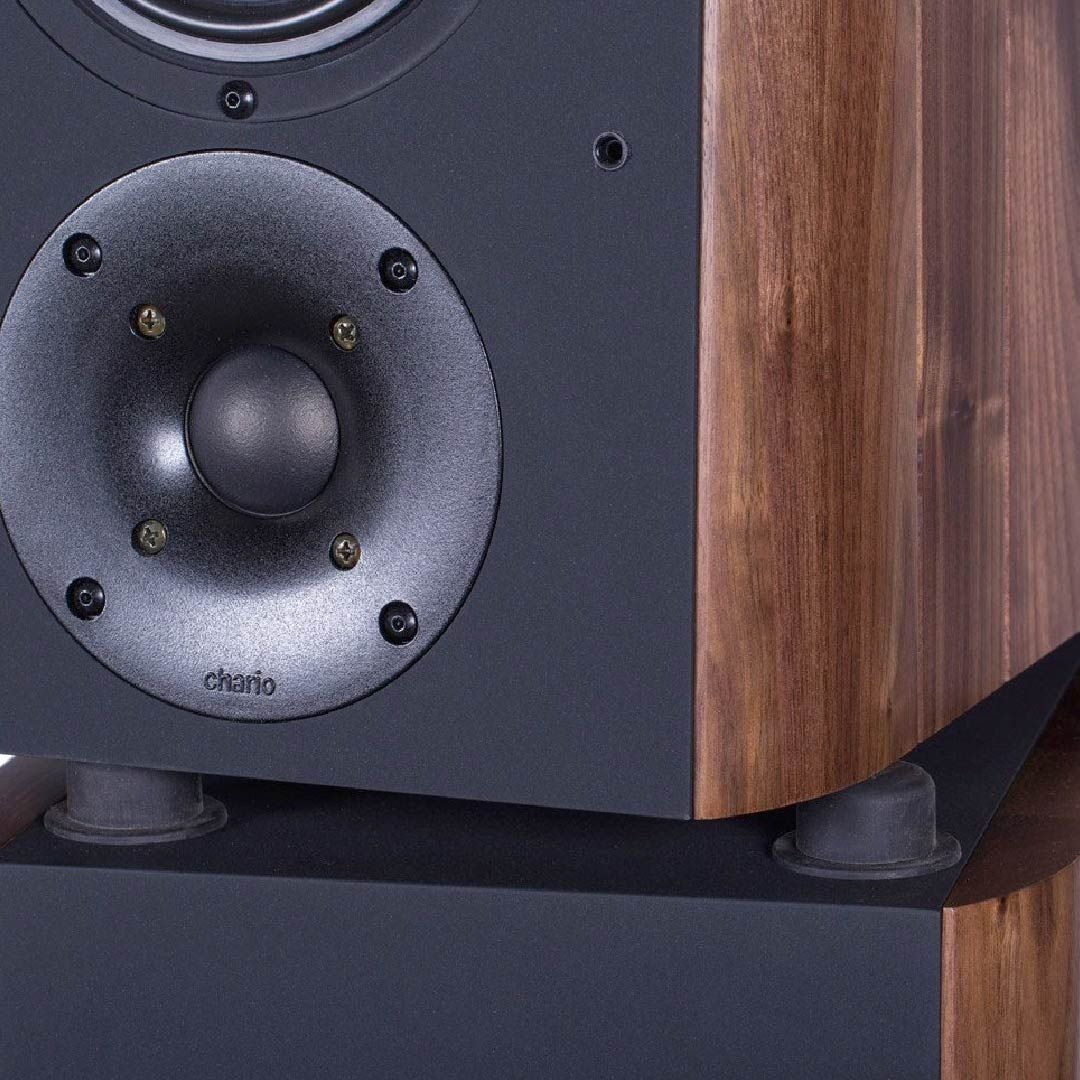

Solid walnut and HDF. The structure comprises two cabinets:
the lower contains two subwoofers; the upper contains one woofer, one
midrange and one tweeter. The two wood cases are separated by four
cylindrical proprietary-engineered elastomeric puffers
acting as vibration decouplers to dissipate mechanical energy by orthogonal
elongation
Size & Weight
1005 x 240 x 340mm (H x W x D) / 11 Kg
Box Size & Weight
1117x 449 x 345mm (H x W x D) / 50Kg
PSYCHOACOUSTIC TARGET
SCIENCE AND PERCEPTION AT THE SERVICE OF SOUND.
Psychoacoustics allows us to understand how our perceptual system (ears, eyes, brain, smell, etc.. ) perceives the components of reproduction and how it decode them.
The acoustic environment allows us to understand how the environment affects drastically the reproduction, then how the energy is transferred into the listening room and what the listener receives.
The proper interaction of the results of scientific research in these fields allow us to provide a natural sound and respectful of the main component to be considered: the man.
