CONSTELLATION SERIES

PHOENIX MK2

3 ways Center Channel


The completely redesigned center speaker of the Constellation line introduces a new level of acoustic depth, delivering even more precise and immersive sound performance. Thanks to meticulous engineering, it integrates seamlessly with every other component in the range, ensuring tonal consistency and high-level performance in any configuration.


The new Phoenix model, both versatile and refined, has been specifically optimized for vocal clarity, naturally enhancing dialogue with remarkable detail. The result is a richer, more dynamic, and engaging audio experience—tailored for home cinema enthusiasts and demanding users alike.

Constellation Phoenix MK2

  • Technical Data

    Low Frequency Load

    Vented NRS


    Configuration

    3-ways


    Drivers

    1 tweeter 38mm T38Waveguide

    1 woofer 130mm Paper Compound


    Sensitivity

    90 dB SPL normalized to 1 m / 2.83 Vrms / decorrelated L/R

    pink noise ITU-R BS 1116-1 I compliant listening room


    Low Frequency

    45 Hz @ -3dB referred to C4 WETS


    Rated Impedance

    Modulus 4 Ω (min 3.9) Argument ± 36°

  • Cabinet & Dimension

    Cabinet

    Solid walnut and HDF.


    Size & Weight

    210 x 530 x 390 mm (H x W x D) / 8 Kg

  • Acoustic Environment & Amplification


    Listening Distance

    Optimum speaker-listener distance > 2 m


    Listening Layout

    A carpeted floor in front of the speakers is recommended


    Side and Back Walls

    Should be at least 1m away from the speaker front baffle


    Suggested Amplifier

    120W/4Ω 8minimum 3.9)

    Argument +/- 36°

The back of a black speaker on a white background.

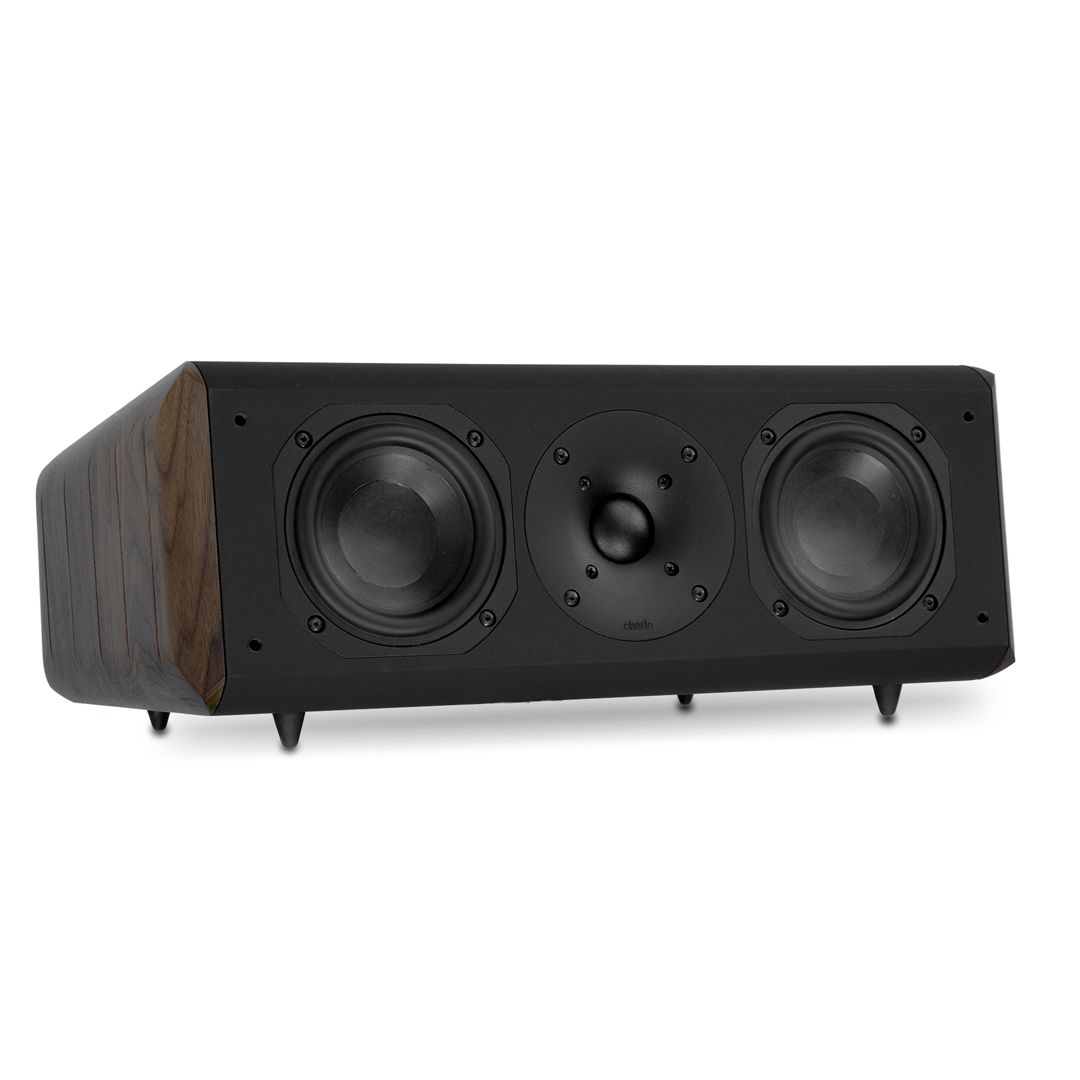

A wooden speaker is sitting on a white surface.

OUR CHOICE OF FREQUENCY.

Constellation Phoenix

The choice to specify a low-frequency cutoff at 48 Hz for a dialogue channel in a Dolby 5.1 system, although seemingly oversized with respect to the canonical requirements of the human voice, represents a deliberate and technically sound design decision.


As correctly noted, the lowest fundamental of the male voice in the spoken register typically lies around 85 Hz, below which vocal information is generally not encoded in the center channels of a Dolby mix. However, it is essential to consider that the perception of vocal intelligibility does not depend solely on the fundamentals, but also — and in some cases primarily — on how the lower harmonics and transient components are handled by the playback system.
